Every engineering solution starts with understanding the challenge. These are the critical well integrity and intervention challenges where KhalidX Energy is focused today.
Well Integrity
Lifecycle AssuranceIntervention Tech
Non-Cement SolutionsThermal Wells
High Temperature
Muscat, Sultanate of Oman
Active Engineering Operations
Local In-Country Value
Muscat Engineering Team
ABOUT KHALIDX ENERGY
Engineered for Challenges.
Driven by Value.
At KhalidX Energy, every engineering solution starts with understanding the challenge. We concentrate on solving complex well integrity and intervention challenges that directly impact well performance, safety, and long-term value across Oman and the region.
Engineering Precision
Proven TechnologiesAsset Optimization
Long-Term Value
We are more than a service provider.
We are your engineering partner.
We are your engineering partner.
Engineering Challenges
The Challenges We Focus On
Every engineering solution starts with understanding the challenge. These are the critical well integrity and intervention challenges where KhalidX Energy is focused today.
01
Focus Area
High temperatures create unique stresses that can compromise well integrity over time.
02
Focus Area

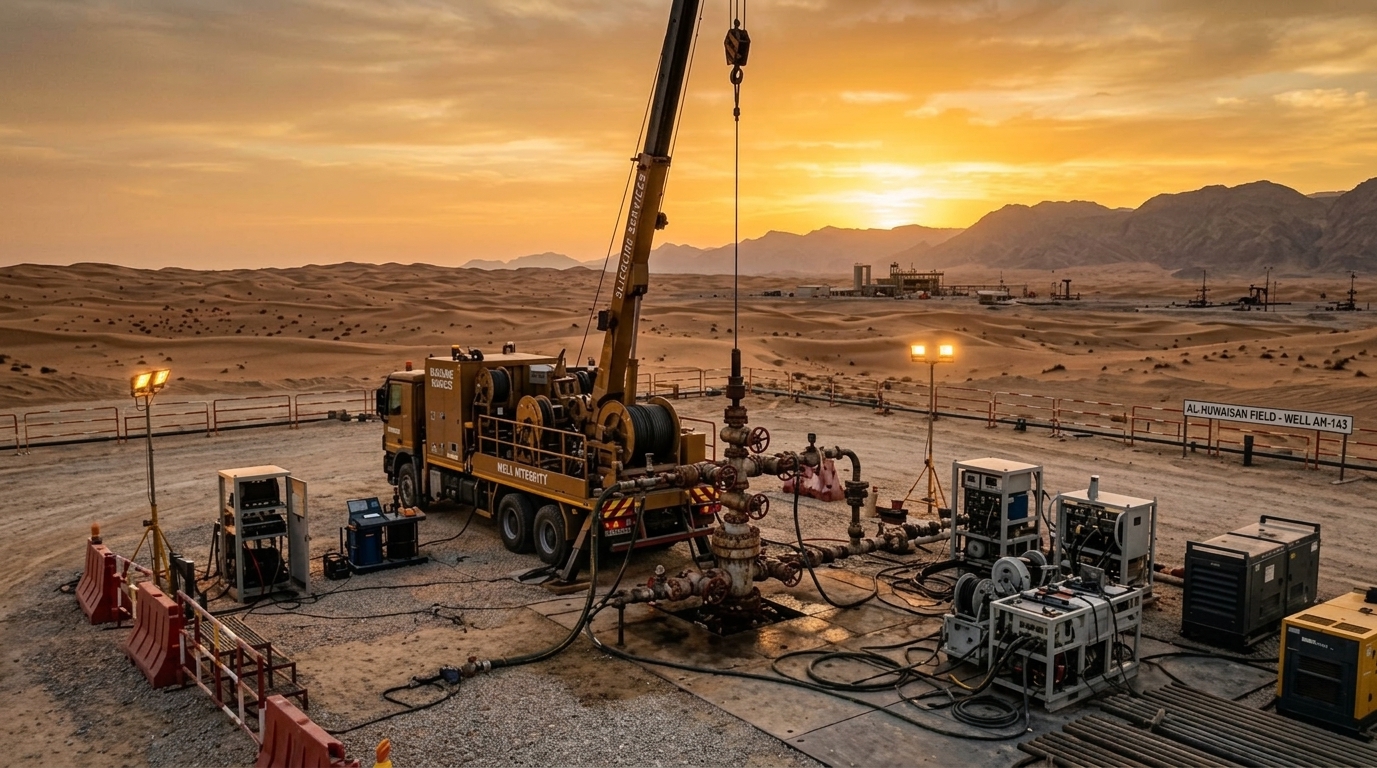

Aging infrastructure requires innovative solutions to extend well life and maintain production.
03
Focus Area
Maintaining well integrity throughout the entire life cycle is essential for safety and performance.
04
Focus Area
When the primary barrier is compromised, it risks wellbore stability and reservoir isolation.
05
Focus Area
Unwanted pressure movement in the annulus can lead to serious operational risks.
06
Focus Area
Restoring full bore access without damaging critical barriers is key to successful intervention.
Every challenge is unique. Every solution starts with a conversation.
Talk to our engineering experts to discuss your well integrity and intervention challenges.
OUR SOLUTIONS
ENGINEERED SOLUTIONS
FOR LASTING RESULTS
At KhalidX Energy, we deliver technology-driven solutions designed to solve critical well integrity and intervention challenges. Our solutions are built on engineering excellence, proven performance, and a commitment to creating long-term value for our clients.
ENGINEERED FOR INTEGRITY
PROVEN TECHNOLOGIES
OPERATIONALLY RELIABLE
DELIVERING MEASURABLE VALUE
Core Mission
EXTEND WELL LIFE.
PROTECT INTEGRITY.
OPTIMIZE PERFORMANCE.
OUR SOLUTION PORTFOLIO
01

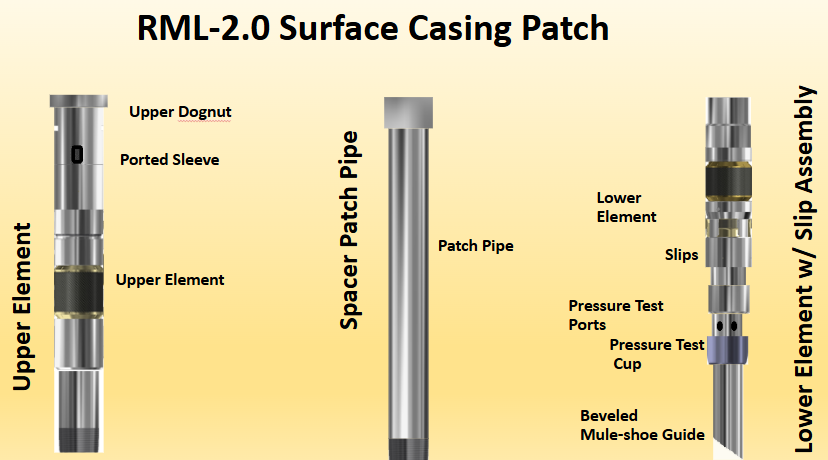

RML-2.0 SURFACE CASING PATCH
The renewed RML-2.0 Surface Casing Patch by Revelation Management — purpose-built for sealing shallow casing failures with a large internal diameter, elements tested to 3,150 psi (21.7 MPa), a 100% success rate and no need to excavate the wellhead.
- Purpose-designed for shallow casing failures
- Elements tested to 3,150 psi (21.7 MPa)
- Thermal dressing available to 343°C (650°F)
02

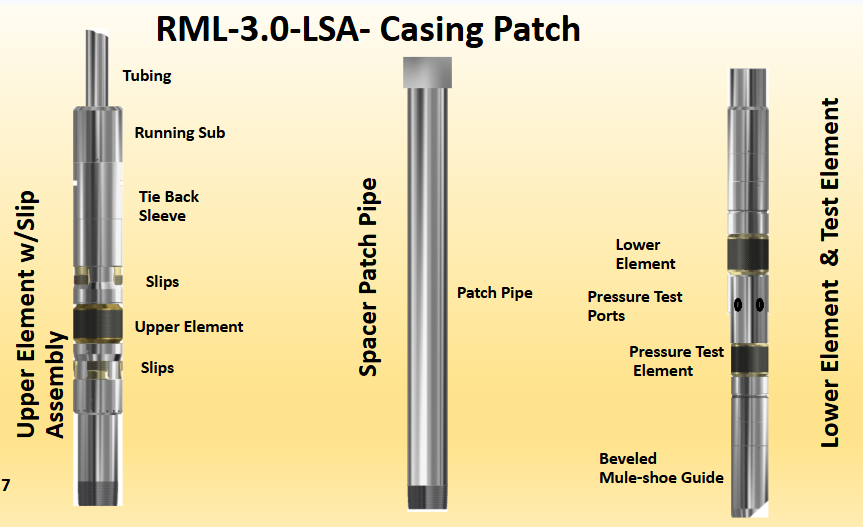

CASING PATCH 3.0 (RML-LSA-3.0)
The new RML-LSA-3.0 Casing Patch engineered by Revelation Management LTD (RML) — large internal diameter, 3,150 psi (21.7 MPa) element rating, thermal dressing to 343°C (650°F), and advanced 3-slip anchoring proven in 270+ wells.
- Elements tested to 3,150 psi (21.7 MPa)
- Thermal rating up to 343°C (650°F)
- Predictable 2-run installation (Dummy & Patch Run)
03

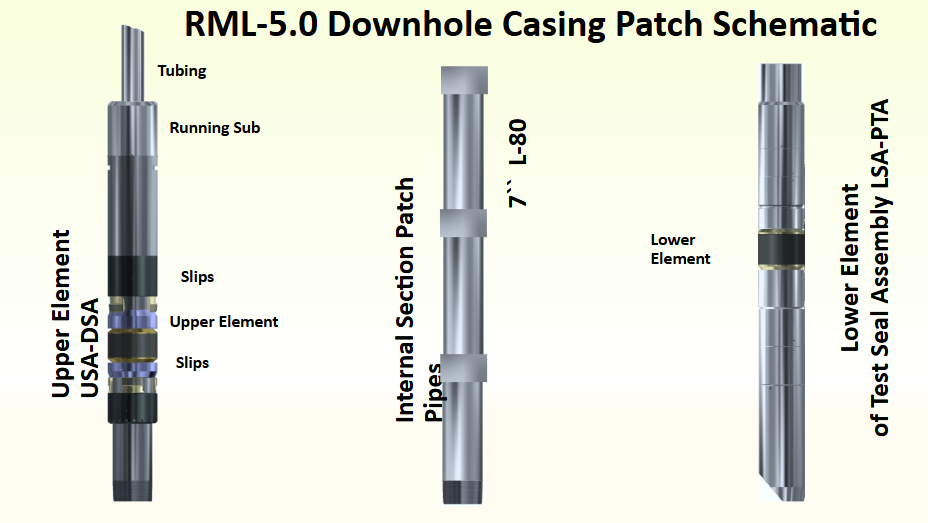

RML-5.0 DOWNHOLE CASING PATCH
The new RML-5.0 Downhole Casing Patch by Revelation Management — restores casing integrity with a double element seal while maintaining a large ID for EOR access, tested to 2,030 psi (14 MPa) and thermal rated to 343°C (650°F), with a 100% sealing success rate across 200+ operations.
- Double element seal with large maintained ID
- Tested to 2,030 psi (14 MPa)
- Thermal rating up to 343°C (650°F)
04

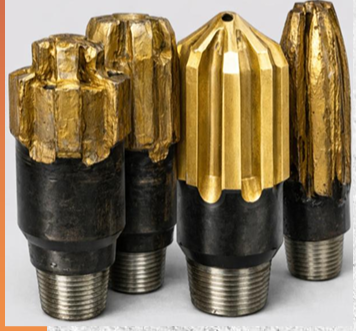

ADVANCED MILLING-OUT TECHNOLOGY for HORIZONTAL LINERS with INTECHNO
Advanced Milling-Out Technology (AMT) for sensitive thermal well conditions — milling out auxiliary equipment in horizontal liners and restoring full-bore access for refracturing, acid stimulation, reperforation and recompletions.
- No agitators, oscillators, jars or impulse tools
- Minimal mechanical impact on casing and cement sheath
- Surface rotation via Logan VTS-100 Power Swivel
05

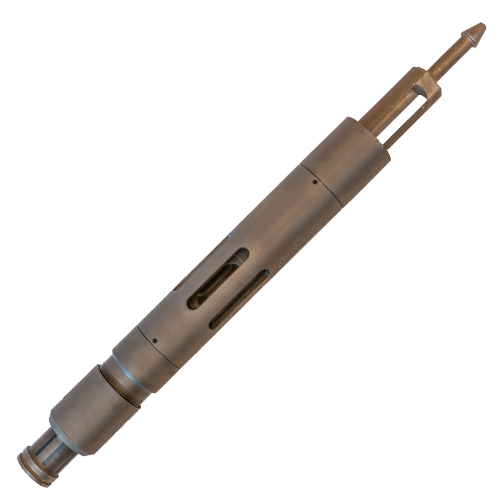

ALII TECHNOLOGY (ANNULAR ISOLATION)
ALII – Artificial Lift Intake Isolation Tool. A patented tubing isolation valve that delivers positive well control before breaking wellhead containment, without killing the well or venting annular gas.
- No kill fluid, no methane venting
- Functions on the existing rod pump and rod string
- Sizes 2 3/8" to 5 1/2" (73mm to 139.7mm)
06

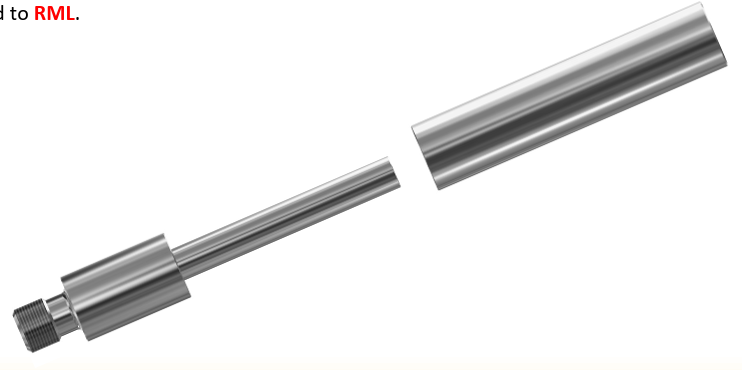

ROD SHEAR COUPLER (T34, T78, T100, T118)
The new RML Rod Shear Coupler (T34, T78, T100, T118) by Revelation Management & INTECHNO — engineered for stable shear-off at specified tensile loads, high torque resistance, zero downhole debris, and cost-effective refurbishment for Artificial Lift wells.
- Stable shear-off at specified tensile load (e.g., 22,000 lbs / 10 tons for 7/8" rod ±10%)
- Integrated 6-inch (15 cm) fishing cylinder for overshot and jar retrieval
- Proprietary torque-resistant engineering preventing premature disconnection
PROVEN PERFORMANCE
NUMBERS THAT DEFINE OUR EXCELLENCE
6
Core Engineering Focus Areas
100
Barrier Assurance Rate
24
Technical Advisory Support
50
Field Proven Solutions
CLIENT & INDUSTRY TRUST
WHAT OPERATORS SAY ABOUT OUR PERFORMANCE
Trusted by regional energy operators to deliver safe, reliable, and technically superior well intervention results.
“KhalidX Energy demonstrated remarkable technical proficiency in solving our sustained casing pressure challenge. The Casing Patch 2.0 deployment restored full mechanical integrity without rig intervention.”
Eng. Salim Al Kindi
Petroleum Engineering Lead - Oman“Their engineering-first approach to thermal well challenges saved us weeks of downtime. The non-cement barrier technology performed flawlessly under severe thermal cycling.”
Dr. Hamed Al Harthy
Well Integrity Advisor“Restoring full bore access in complex mature wells was made seamless with KhalidX Energy. Outstanding diagnostic insights, safe execution, and reliable downhole performance.”
Nasser Al Balushi
Intervention Operations Manager“A true partner in asset life extension. Their technical papers and engineering advisory provide actionable clarity for our late-life well remediation campaigns.”
Tariq Al Zadjali
Field Development Superintendent
TECHNICAL INSIGHTS
KNOWLEDGE THAT DRIVES BETTER DECISIONS
FEATURED ARTICLE
Technical Articles
Casing Patch 2.0 vs Conventional Cement Squeeze: A New Era for Long-Term Casing Integrity
How advanced, non-cement based technology is changing the way operators maintain well integrity in challenging environments.
Long-Term Integrity
Non-Cement Barrier
Thermal Resistance
Annular Isolation
Mature Fields
